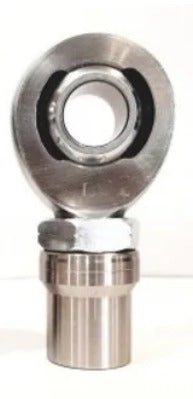

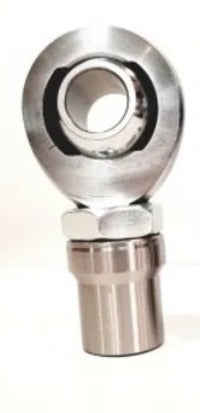

1.25" Chromoly Heims Round Bung XM16

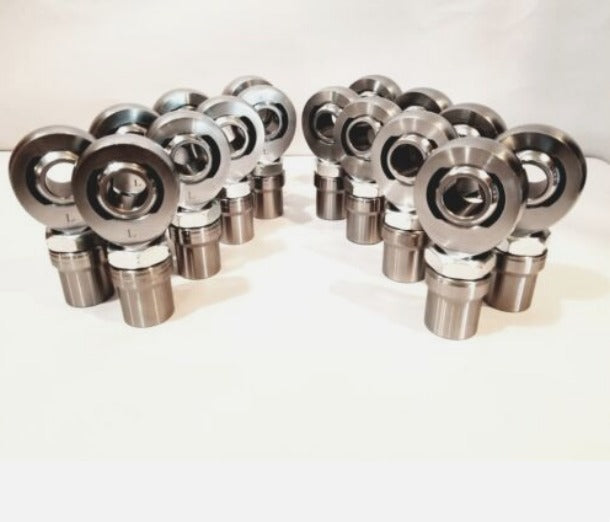

1.25" set of 4130 heat treated chromoly 1.25" heims with round bungs. Bung is for 2" DOM with a .250 wall and Bore is 1".

• ROD END SPECS

  • THREAD SIZE: 1-1/4 x 12
  • BORE: 1  (1.00)
  • BALL WIDTH: 1-3/8  (1.375 )
  • RADIAL LOAD: 76,800 lbs
  • CHROMOLY: 4130
  • TEFLON KEVLAR LINER
    • ( Increases wear & longevity )

• TUBE ADAPTER SPECS

  • THREAD: 1.25"-12
  • LENGTH: 2.00"
  • WIDTH: 2.00"
  • MATERIAL: 1045 STEEL
    • Fits in 2" (2.00) outer diameter tube with (.250) wall thickness with a 1-1/2” (1.50) inside diameter hole
