Grafted Supply

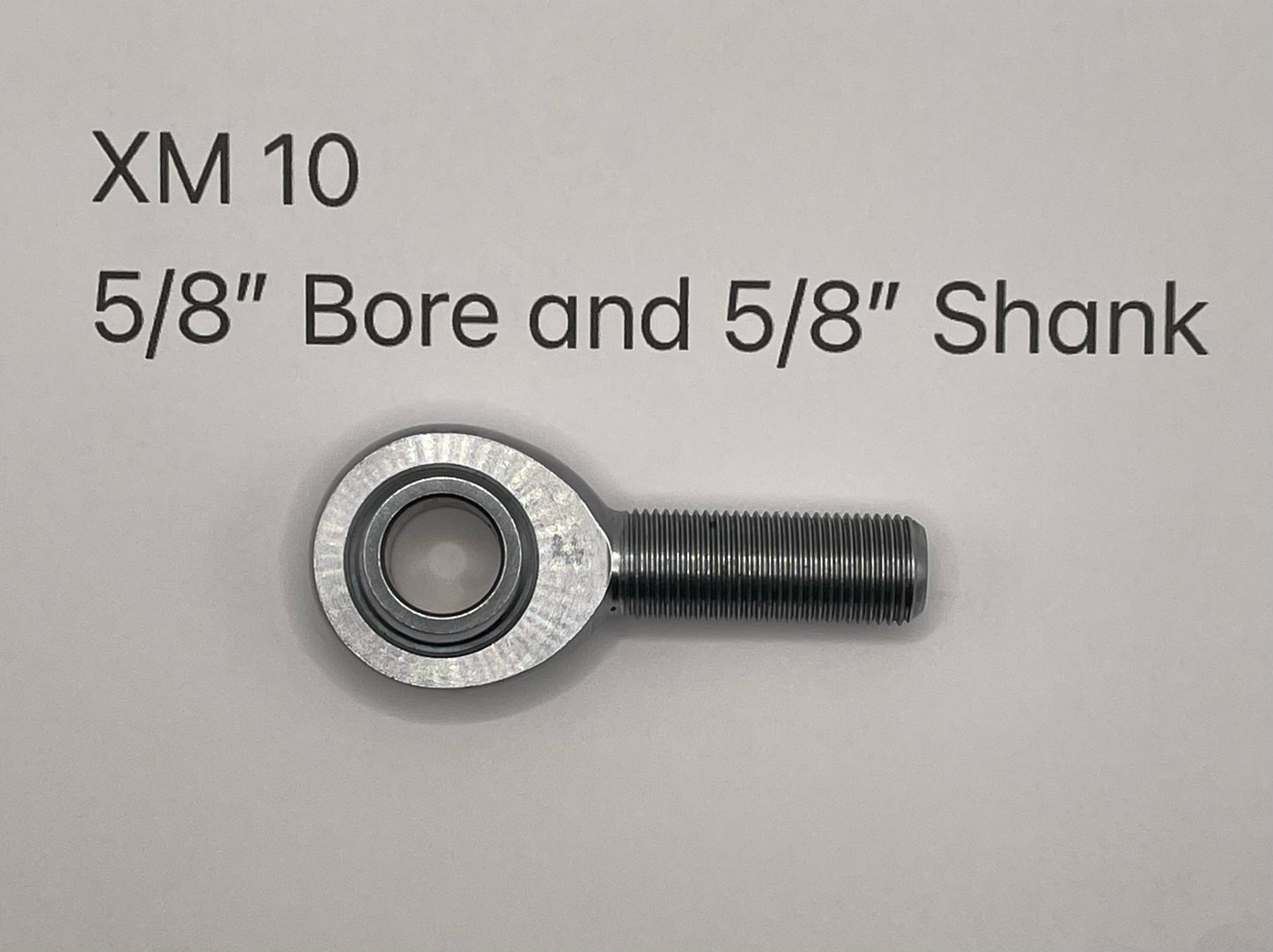

5/8" Chromoly Heims XM10

5/8" Chromoly Heims XM10

$274.99 USD
$649.99 USD $274.99 USD
Sale Sold out
5/8" Chromoly Heims

  • PRODUCT INFO

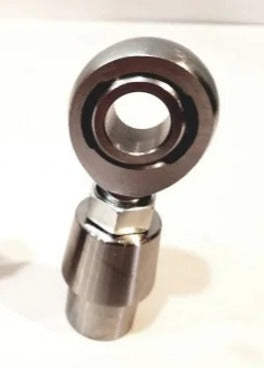

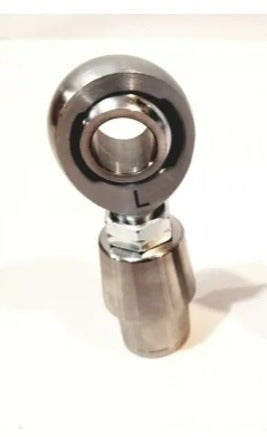

    Chromoly Heim with 5/8-18 Thread X 5/8 Bore, Jam nuts and tube adapter or bungs.

  • ROD END SPECS

    •  THREAD SIZE: 5/8-18
    • BORE: 5/8  (.650 )
    • BALL WIDTH: 3/4  (.750 )
    • RADIAL LOAD: 18,800 lbs
    • 4130 HEAT TREATED CHROMOLY

  • TUBE ADAPTER SPECS

    • LENGTH: 1-7/8  (1.875)
    • WIDTH: 1-1/4  (1.25)
    • 5/8-18 THREAD WITH 1-1/4 OD x .120 WALL

  • MOUNTING WIDTH

    • 1 1/2" (1.5")
    • Fits in 1-1/4 (1.25) outer diameter tube with (.120) wall thickness

Materials

Only the best quality

Shipping & Returns

Free shipping in lower 48 states.

Care Instructions

View full details

  • Free Shipping

    All prices include shipping within the lower 48 states. We can ship out of the US but there may be additional charges for shipping.
